Geratherm Thermometer colour 20 pieces

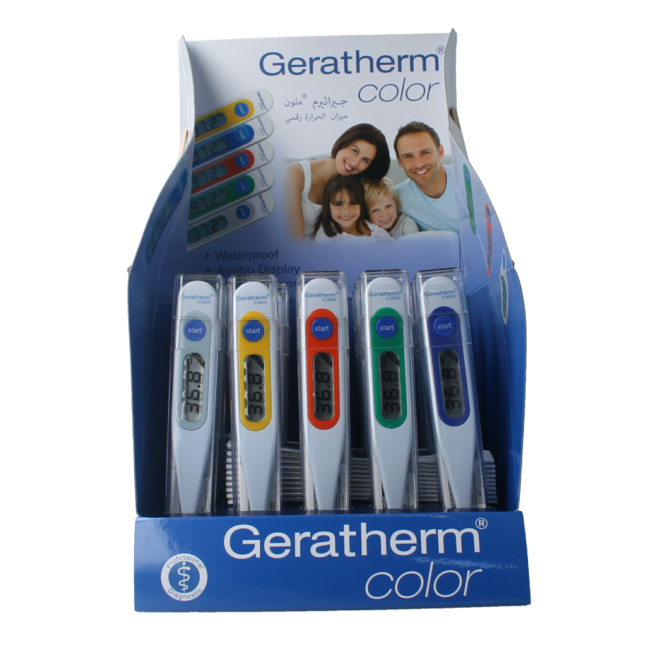

Display with 20 Geratherm Colour Thermometers
Measuring range: 32.0 °C to 43.9 °C; Lower than 32.0 °C indication L °C
Higher than Over 43.9 °C indication H °C Intended use: Measurement of body temperature
Resolution: 0.1 °C Measuring accuracy: ± 0.1 °C from 34.0 °C to 42.0 °C; ± 0.2 °C (other range)
Indication: Liquid crystal display 3 1/2 positions Battery (included): Micro alkaline 192 or LR41 1.55 V
Energy consumption: 0.15 mW during measurement
Battery life: More than 200 hours of continuous operation
Protection degree: IP 27 (protected against objects larger than 12.5 mm and protection against the influence of temporary immersion) Dimensions: 129.80 mm x 18.00 mm x 10.00 mm
Weight: Approx. 11 g including battery
Signal: Acoustic signal of approx. 10 s when no relevant temperature rise is detected anymore
Memory: Built-in memory, allowing the last measured value to be shown Operating conditions: Temperature: 10 °C to 40 °C, Humidity: 15 % to 95 % R.H.
Only temperatures above the ambient temperature can be measured.
Quality guarantee: DIN EN ISO 80601-2-56 Medical electrical equipment – Part 2-56: Particular requirements for basic safety and essential performance of medical thermometers for body temperature measurement (ISO 80601-2-56). Geratherm Medical GERMANY GmbH is certified according to DIN EN ISO 13485 and complies with EU Directive 93/42 / EEC. This entitles the application of the CE marking (notified Electromagnetic body: TÜV Rheinland LGA Products GmbH).
compatibility (EMC): This medical product is a device with extremely high immunity. For this reason, no appendix with EMC tables is included.

What is this product used for
Measuring body temperature

Instructions for use
OPERATING MANUAL
1. Press the ON/OFF button. The display shows:
2. Release the ON/OFF button; the display now shows L °C, with °C flashing.
3. Clean or disinfect the measuring probe before each measurement. Place the measuring probe orally, rectally or axillary (see
measurement methods).
4. As soon as the thermometer no longer detects a relevant temperature rise, °C stops flashing and the maximum value measured up to that point is shown, accompanied by a series of signal tones.
5. After the signal tone, the thermometer continues the temperature measurement for a few more minutes, during which a small increase in the indicated temperature is possible. The measured maximum temperature is held and shown on the LCD display for three minutes and stored, after which the thermometer automatically switches off. The thermometer can also be switched off immediately by briefly pressing the ON/OFF button.
6. The device switches off automatically after approx. 3 minutes. To extend the battery life, we recommend switching off the thermometer by pressing the ON/OFF button after you have noted the temperature.
7. To consult the memory, press and hold the ON/OFF button for 2 seconds while the device is switched off. The last measured temperature appears on the LCD display
NOTE: You can slide a plastic protective cover over the tip of the measuring probe to prevent cross-infection and contamination. The use of a protective cover can result in a deviation of 0.1 °C from the actual temperature. Dispose of used protective covers after use and store the device in a safe place.

MEASUREMENT METHODS
Only temperatures above the ambient temperature can be measured.
ORAL (over 45 to 90 seconds)
Insert the measuring head far under the patient's tongue. Instruct the patient to keep the mouth closed.
The normal temperature with this method is between 36.0°C and 37.5°C.
RECTAL (over 45 to 90 seconds) If your doctor recommends a rectal temperature measurement, you can use disposable covers for the measuring head.
Insert the thermometer into this disposable cover. Use a lubricant to facilitate insertion (no
rough petroleum jelly). Do not insert the tip of the measuring head further than 1.5 cm into the rectum. STOP as soon as you feel a resistance.
The rectal temperature measurement is almost 0.5°C to 1.0°C higher than the oral temperature. AXILLARY
Rub the armpit with a dry towel. Insert the measuring head into the patient's armpit and ensure that
they keep the arm pressed firmly against the side of the body. The normal temperature is approx. 36.7 °C. Remember that to achieve a better measurement result of the axillary temperature, regardless of the beep,
a minimum measurement time of 2 to 3 minutes is recommended.

NOTE: In case you compare temperatures between two thermometers, it is possible that
you see two different values, even if both thermometers are within their accuracy tolerance.
Differences exist with every measurement and the tolerance range of the thermometer can make a difference
of almost 0.1°C.
RECOMMENDATION: Determine your normal temperature and watch for changes

CLEANING AND DISINFECTION
For the disposal of the thermometer and the batteries, the applicable regulations must be observed.
This thermometer must not be disposed of with household waste. Every consumer is obliged to hand in all electrical and electronic devices, regardless of whether they contain harmful substances or not, at a collection point in their town or at a dealer, so that they can be processed in an environmentally friendly manner.
Remove the batteries before you discard the thermometer. Do not throw used batteries away with household waste, but hand them
in at a waste station for small chemical waste or a battery collection point in the specialist trade.

REPLACING THE BATTERY
1. When the symbol “ “ appears, the battery must be replaced.
2. Pull off the battery cover in the indicated direction.
3. Use a toothpick or an insulated probe to remove the battery. Do not use sharp,
metal objects for this.
4. Place a new 1.55 VDC button battery of type SR41, UCC392, LR41, 192 or an equivalent type in the compartment, with the positive side facing up and the negative side facing down.
5. Put the battery cover back on and secure it safely

Read the instructions for use before use.

Components
Digital thermometer Battery included

Warnings
1. The use of the thermometer is not an alternative to a doctor's visit. Persistent fever, especially in children, must be treated by a doctor. Contact your doctor!
2. In children, the temperature must be measured under adult supervision.
3. Keep the thermometer out of reach of children. Small parts of the thermometer may come loose. These can be swallowed by children or lead to a choking hazard through inhalation.
4. Do not boil this thermometer, do not bite it, do not bend it, do not drop it and do not take it apart.
5. Never open the thermometer, except to change the batteries.
6. Avoid temperature measurements within 30 minutes after sporting activity, after bathing or after eating.
7. Never expose the thermometer to direct sunlight, humidity or extreme temperatures during use, storage or transport and protect it against contamination.
8. Do not use the thermometer any longer if it functions incorrectly or the screen is defective.
9. After storage at a very low temperature, allow the thermometer to reach room temperature before use

Storage advice
Storage conditions:
Temperature: -25 °C to +55 °C,
Humidity: 15 % to 95 % R.H.

DISPOSAL:
For the disposal of the thermometer and the batteries, the applicable regulations must be observed.
This thermometer must not be disposed of with household waste. Every consumer is obliged to hand in all electrical and electronic devices, regardless of whether they contain harmful substances or not, at a collection point in their town or at a dealer, so that they can be processed in an environmentally friendly manner.
Remove the batteries before you discard the thermometer.
Do not throw used batteries away with household waste, but hand them in at a waste station for small chemical waste or a battery collection point in the specialist trade.

Other information
Medical device. Read the instructions for use before use.

Manufacturer / Distributor
Geratherm Medical, GERMANY GmbH, Fahrenheitstraße 1, 99331 Geratal, Germany
